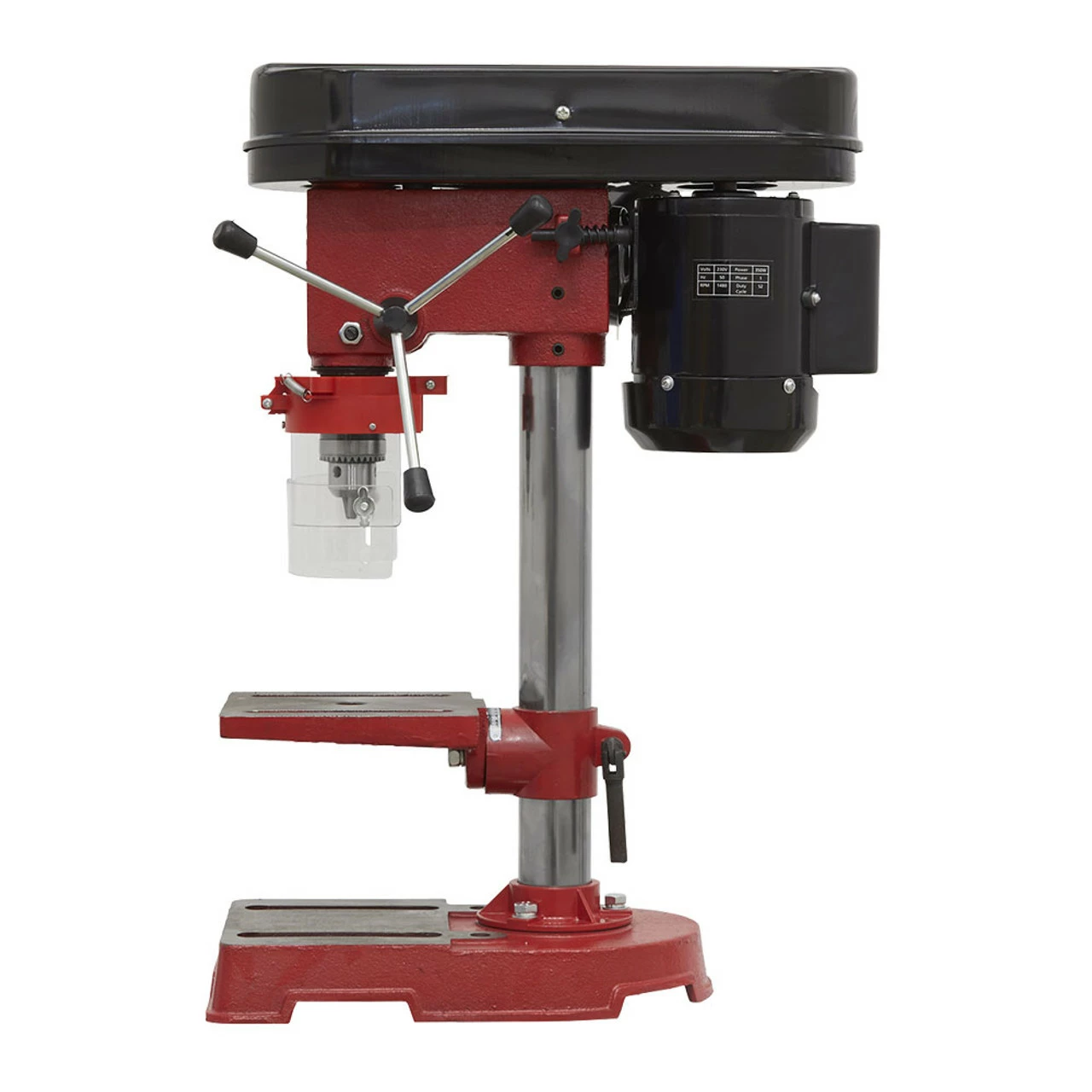

Sealey SDM30 Pillar Drill 5-Speed Hobby Model 580mm Height 350W/230V

Sealey SDM30 Pillar Drill 5-Speed Hobby Model 580mm Height 350W/230V

Compact bench drill powerful enough to cut through wood, plastic and metal. Easy to operate, smooth and quiet in operation. Suitable for DIY or a small workshop. Five speed settings between 580 and 2650rpm. Safety is ensured by protection guard, no-volt safety switch and access to drive belt is denied during operation by mechanical protection.

SDM30 Features

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications
• Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments
• Model No

GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits

• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work
• Mortise attachments are available for all Model No’s GDM120B – GDM200F inclusive

SDM30 Specification

• Model No SDM30
• Base Size: 200 x 310mm
• Brand: Sealey
• Collar Diameter: Ø40mm
• Column Diameter: Ø46mm
• Drilling Capacity (Chuck Size): 13mm
• Maximum Distance Spindle to Base: 290mm
• Maximum Distance Spindle to Table: 200mm
• Motor Power (Start): 185W(350W)
• Nett Weight: 15.2kg
• Number of Speeds: 5
• Overall Height: 580mm
• Speed Range: 580-2650rpm
• Spindle Centre to Column: 104mm
• Spindle Nose Taper: MT2
• Spindle Travel: 50mm
• Supply: 230V
• Swing: 208mm
• Working Base Surface Size: 138 x 180mm
• Working Table Surface Size: 158 x 160mm

What is included:

• 1 x Sealey SDM30 Pillar Drill 5-Speed Hobby Model 580mm Height 350W/230V
