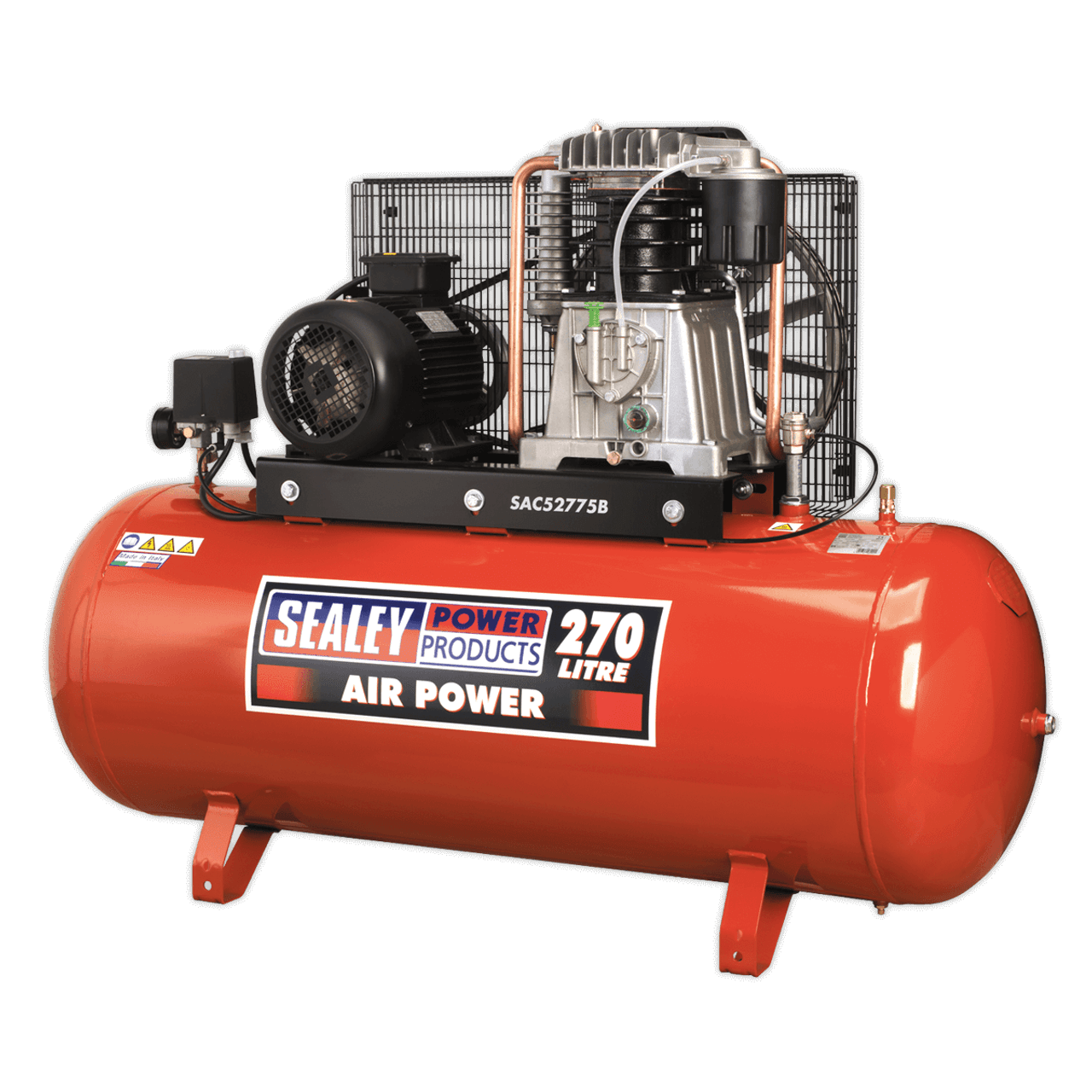

Sealey SAC52775B Compressor 270L Belt Drive 7.5hp 3ph 2-Stage With Cast Cylinders

Sealey SAC52775B Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.

SAC52775B Features

• Heavy-duty 3-phase compressor suitable for the professional workshop
• 2-Stage pump system coupled with a 7

5hp motor maximizes performance to keep running costs low compared to single stage, single phase model

• Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling
• Supplied with full CE certification, test certificates and operating/maintenance manual

SAC52775B Specification

• Model No SAC52775B
• Air Displacement cfm(L/min): 29.7(841)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 21.5(609)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 32A
• Motor Output: 7.5hp
• Nett Weight: 143kg
• Outlet: 1/2″BSP Female Tap
• Phase: 3ph
• Receiver Capacity: 270L
• Size (W x D x H): 1550 x 510 x 1070mm
• Speed: 1280rpm
• Supply: 415V

What is included:

• 1 x Sealey SAC52775B Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders
