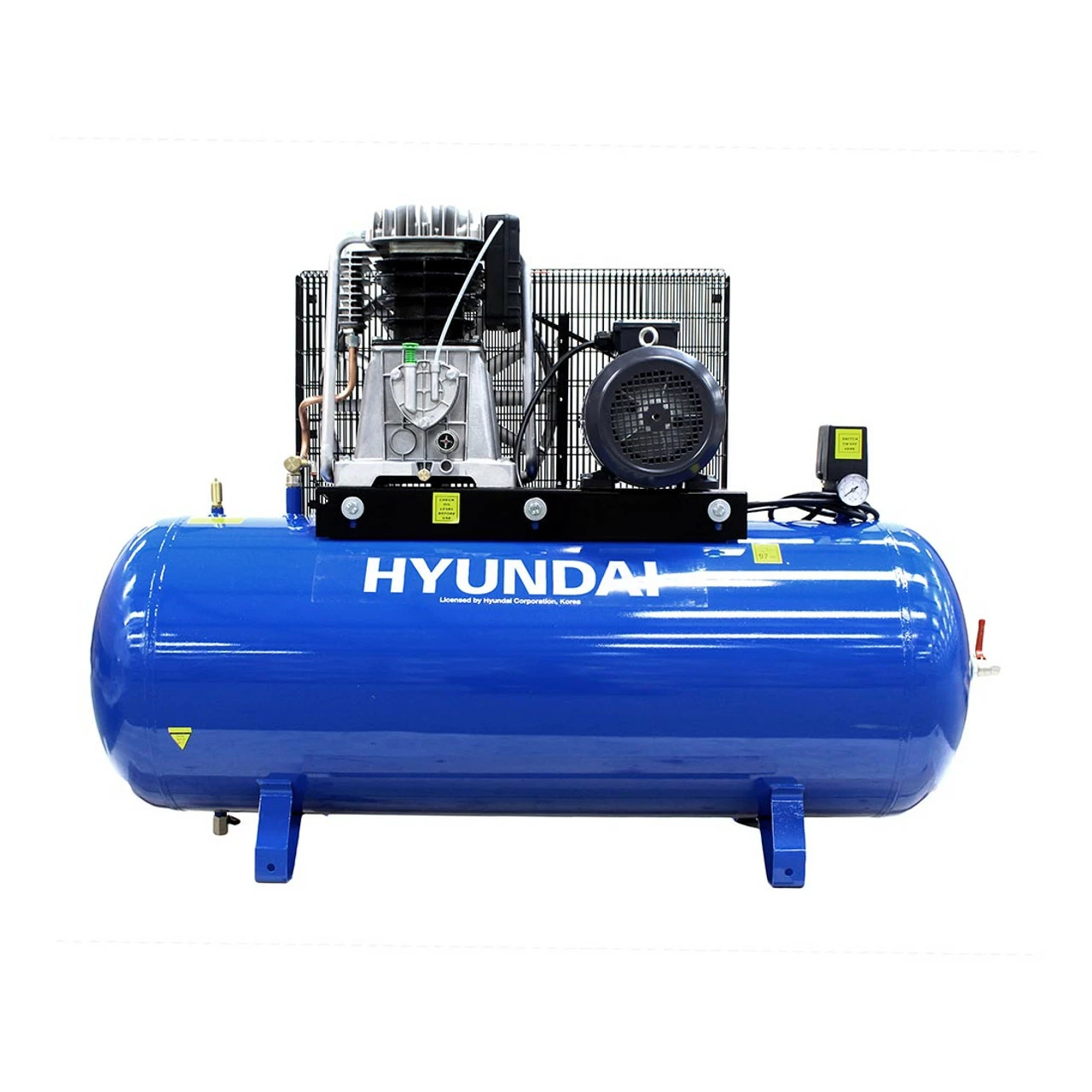

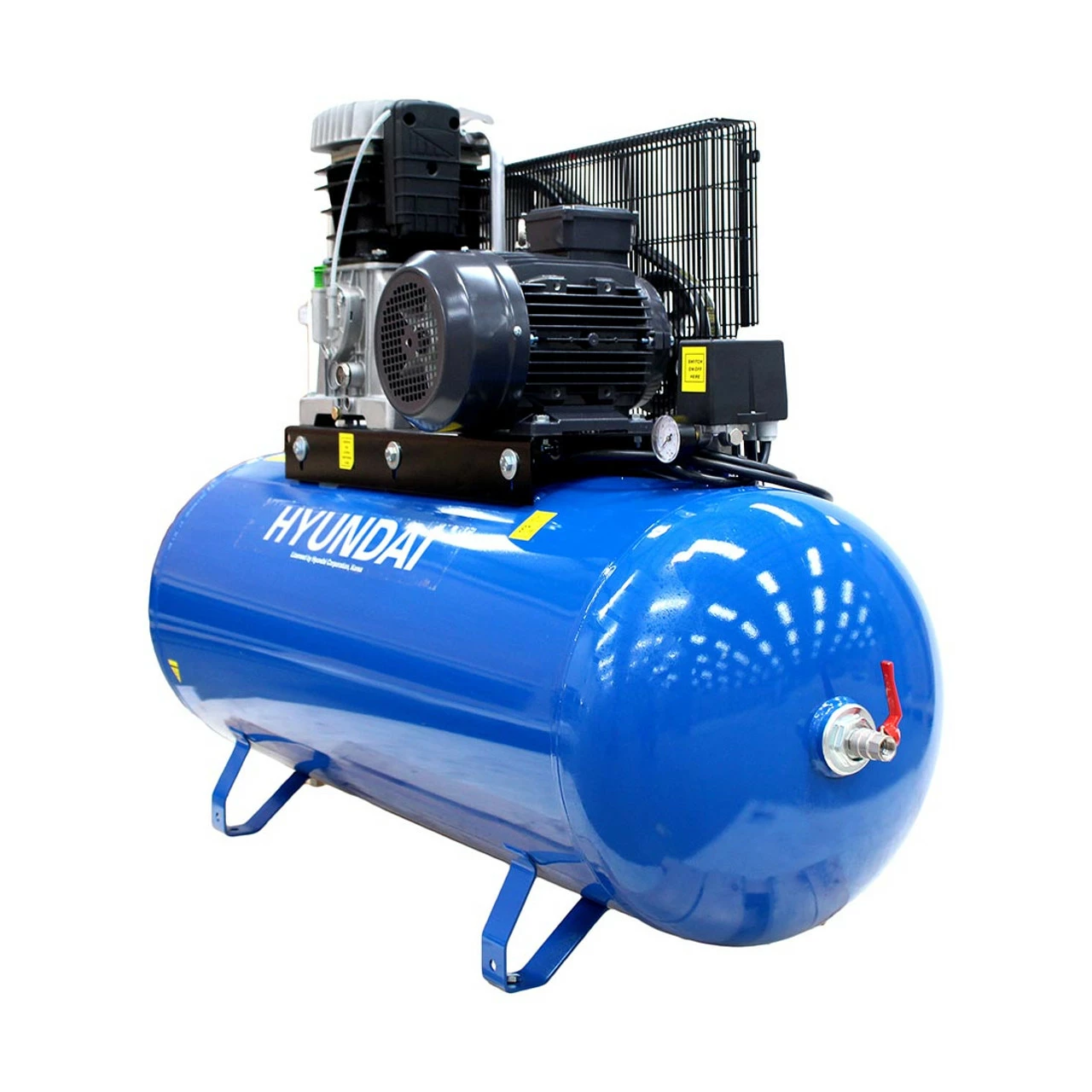

Hyundai HY75270-3 270L 3-Phase Floor-Mounted Belt Drive Compressor 7.5hp 400V

Hyundai HY75270-3 270L 3-Phase Floor-Mounted Belt Drive Compressor 7.5hp 400V

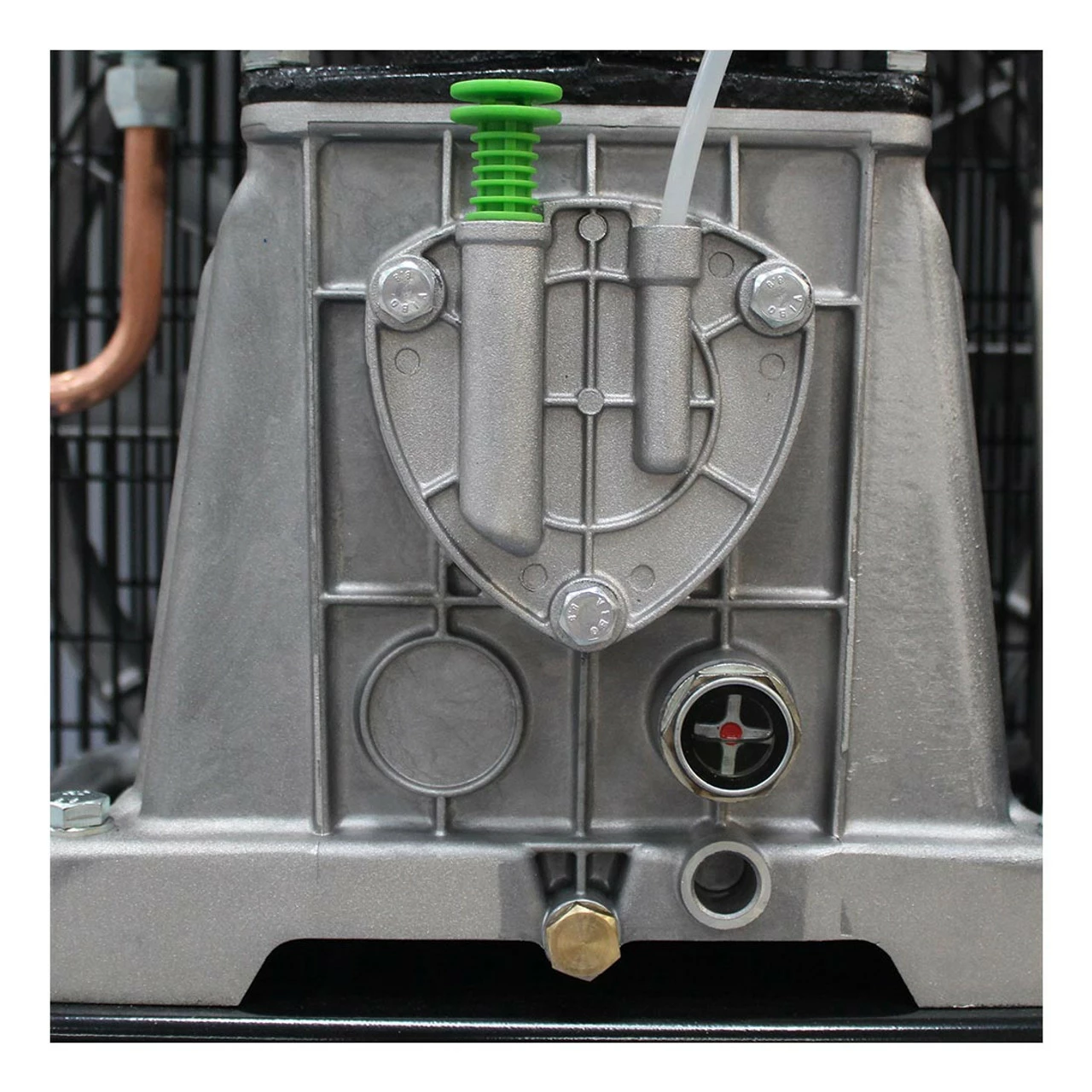

The HY75270-3 is a heavy-duty industrial and professional three phase air compressor, built with the highest quality components to provide unbeatable performance. This air compressor benefits from the powerful 7.5hp engine and produces 29 CFM from its large 270 litre rolled steel air tank. The heavy duty motor has built-in overload protection, it’s fitted with aerodynamic flywheels for efficient cooling and the twin cylinder pump has a slow running, 3 phase motor, for lower noise levels and increased life expectancy. The cast iron cylinder block is designed to last and the air receiver is built to the latest European Standards 09/105 CE.

HY75270-3 Features:

• Part of the Hyundai “Pro Series” air compressor range designed for professional users.
• A belt drive air compressor, it’s powered by a 7.5hp engine.
• Fitted with a large 270L rolled steel air tank, producing 29cfm.
• A belt driven air compressor, it’s built to withstand the challenges of tough daily use.
• Ideal for mechanics, workshop and industrial users who need a heavy-duty air compressor.

HY75270-3 Specification:

• Air Outlet: Valve Tap/½” BSP
• Connection Method / Cable Length (m): Hard Wired
• Cut-In Pressure (PSI/Bar): 87/6
• Cut-Out Pressure (PSI/Bar): 120/8.3
• Drive Type: Belt
• Frequency (Hz): 50
• Motor Power (hp/kW): 7.5/5.6
• Outlet Pressure Regulation Type: Fixed
• Overall Dimensions L x W x H (mm): 1600 x 500 x 1040
• Phase: 3
• Displacement (Cubic Feet Per Minute – L/min): 29/821
• Rated Motor Speed (RPM) (rpm): 2800
• Tank Material: Rolled steel
• Voltage (V): 400
• Height: 1040
• Length: 1600
• Dimensions Unit: Millimetres
• Width: 500
• Free Air Delivery: 23
• Frequency: 50
• Model: HY75270-3
• Motor: Electric
• Net Weight (kg): 150
• Tank Capacity (litres): 270
• Maximum Pressure (psi): 145
• Maximum Pressure (bar): 10
• Air Displacement (LPM): 821
• Air Displacement (CFM): 29
• Air Flow – FAD (L/MIN): 595
• Air Flow – FAD (CFM): 21

What is included:

• 1x HY75270-3 270L 3-Phase Floor-Mounted Belt Drive Compressor 7.5hp 400V
