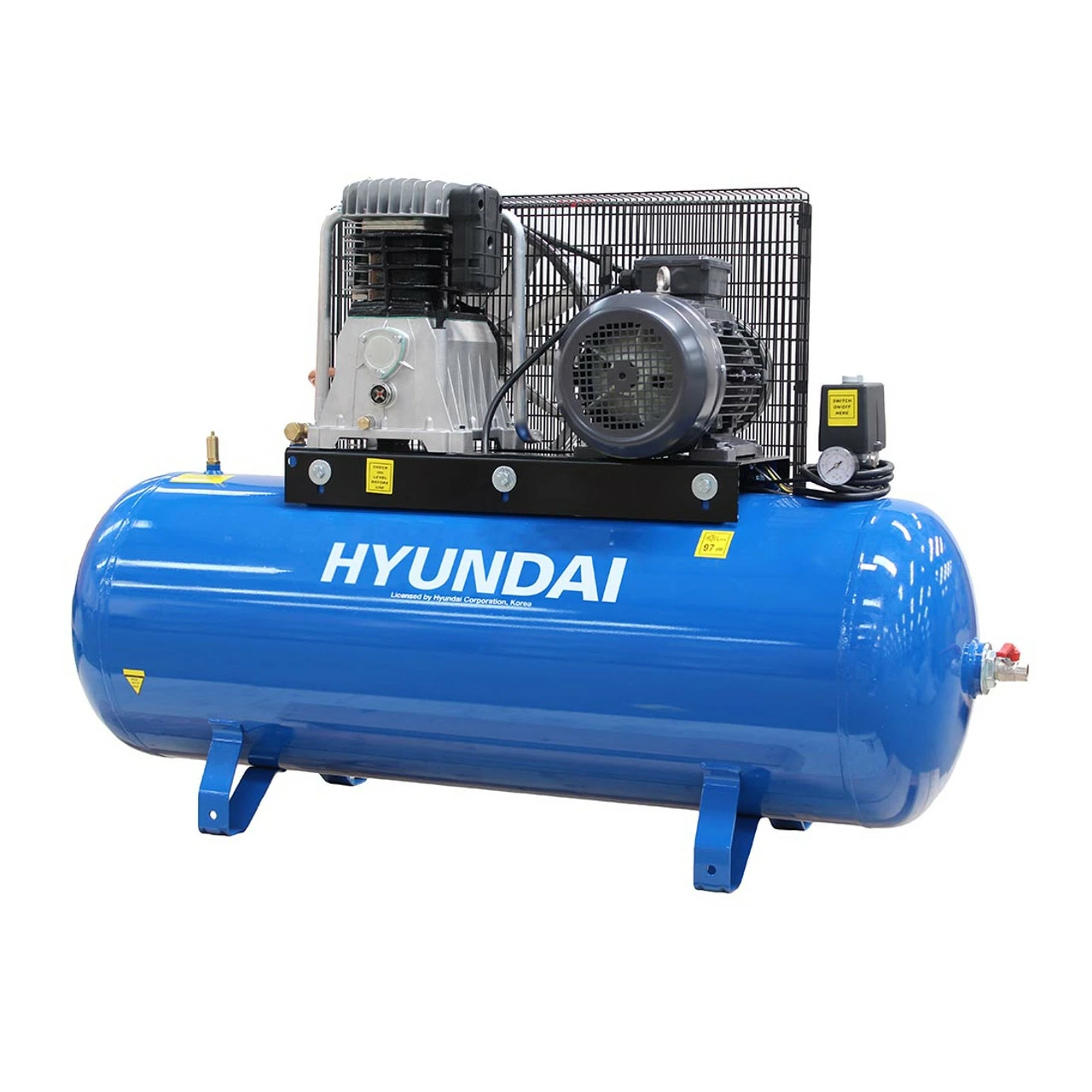

Hyundai HY55200-3 200L 3-Phase Floor-Mounted Belt Drive Compressor 5.5hp 400V

Hyundai HY55200-3 200L 3-Phase Floor-Mounted Belt Drive Compressor 5.5hp 400V

The HY55200-3 is a heavy-duty industrial and professional three phase air compressor, built with the highest quality components to provide unbeatable performance. The heavy-duty motor has built-in overload protection, it’s fitted with aerodynamic flywheels for efficient cooling and the twin cylinder pumps has a slow running speed for lower noise levels and increased life expectancy. The cast iron cylinder block is designed to last and the air receiver is built to the latest European Standards 09/105 CE.

Powered by a 3-phase 5.5hp motor, the HY55200-3 can produce 21 CFM and has a 200 litre air tank. For professional users who have demanding air-powered tools, the HY55200-3 is the perfect machine for the job.

HY55200-3 Features:

• Powered by a 5.5hp motor.
• Equipped with a large 200L tank.
• Products a maximum output of 16.5CFM.
• Aerodynamic flywheels for efficient cooling

HY55200-3 Specification:

• Air Outlet: Valve Tap/½” BSP
• Cut-In Pressure (PSI/Bar): 87/6
• Cut-Out Pressure (PSI/Bar): 120/8.3
• Drive Type: Belt
• Frequency (Hz): 50
• Motor Power (hp/kW): 5.5/4
• Outlet Pressure Regulation Type: Fixed
• Overall Dimensions L x W x H (mm): 1520 x 480 x 940
• Phase 3
• Displacement (Cubic Feet Per Minute – L/min): 23/651
• Rated Motor Speed (RPM) (rpm): 2800
• Tank Material: Rolled steel
• Voltage (V): 400v
• Height: 940
• Length: 1520
• Dimensions Unit: Millimetres
• Width: 480
• Model: HY55200-3
• Net Weight (kg): 15
• Tank Capacity (litres): 200
• Maximum Pressure (psi): 145
• Maximum Pressure (bar): 10
• Air Displacement (LPM): 651
• Air Displacement (CFM): 21
• Air Flow – FAD (L/MIN): 476
• Air Flow – FAD (CFM): 16.5

What is included:

• 1x HY55200-3 200L 3-Phase Belt Drive Compressor 5.5hp 400V
